continue rain gutter example

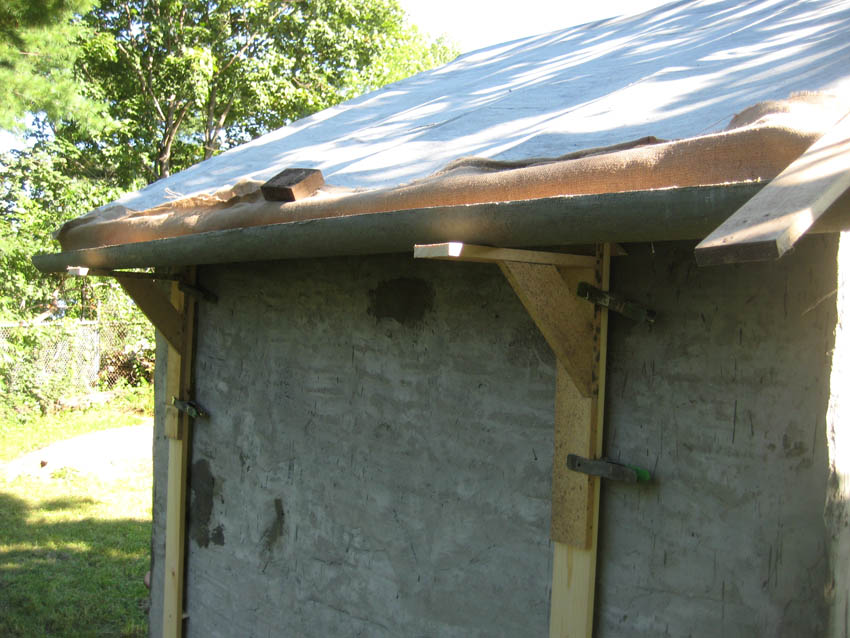

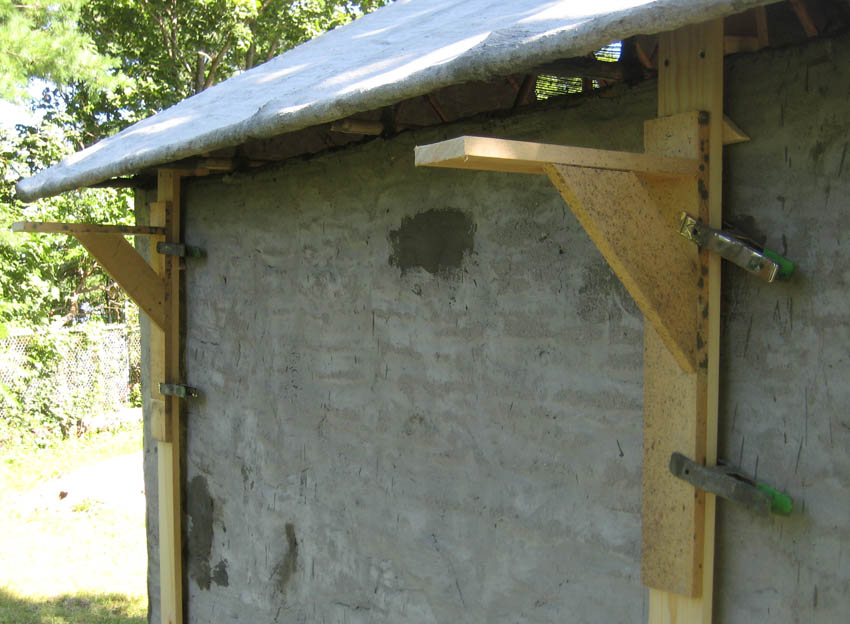

Adjustable supports for the rain gutter are placed in approximate position.

Align the outside of the gutter with the slope of the roof using a board on the roof.

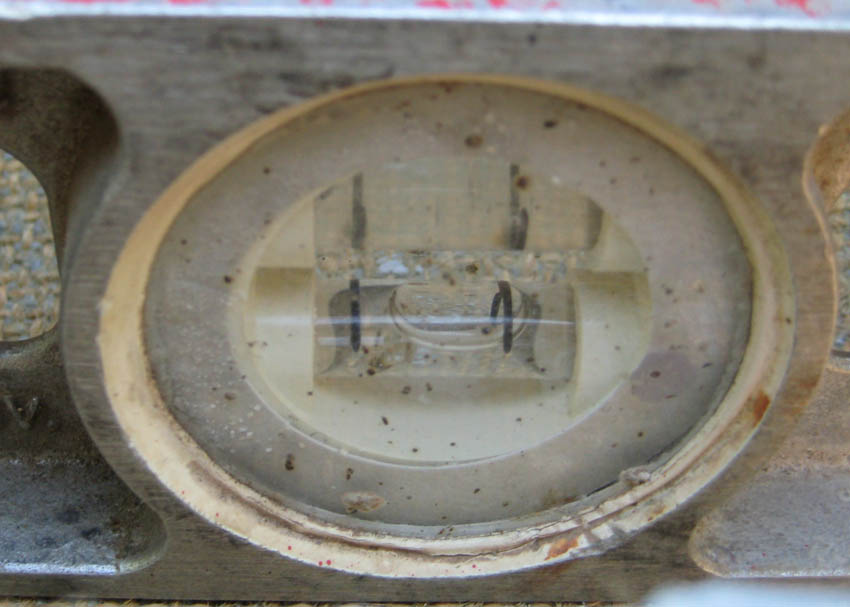

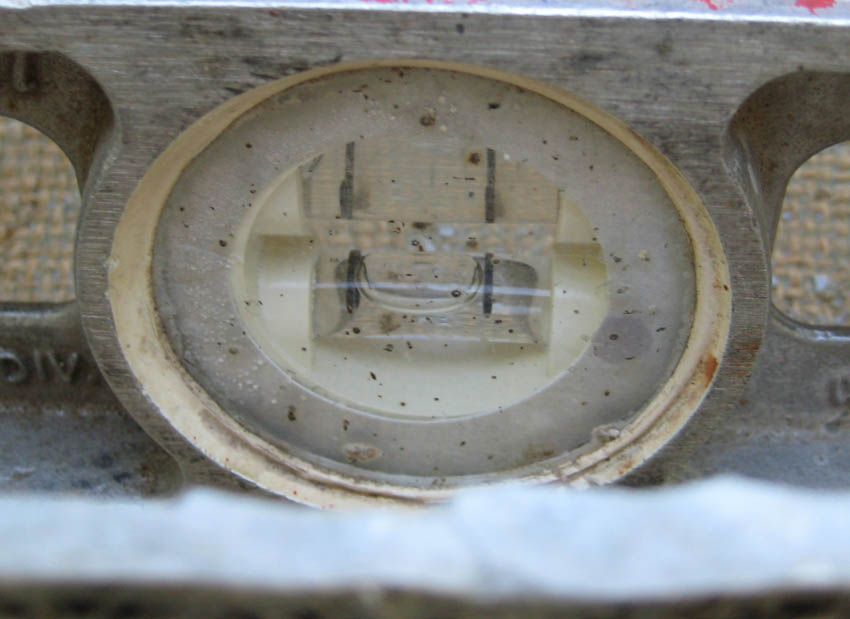

Establish level and mark the brace. Place a second mark to establish downward slope.

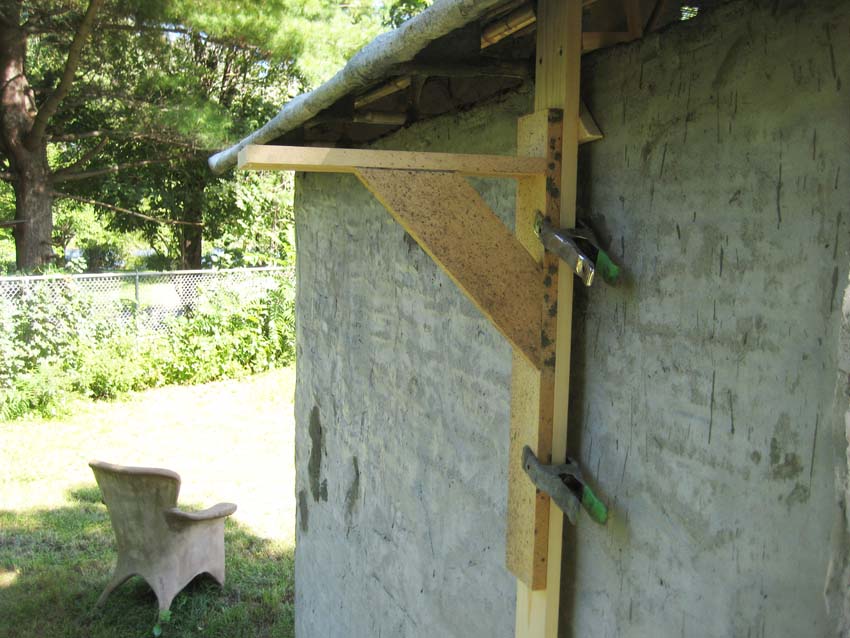

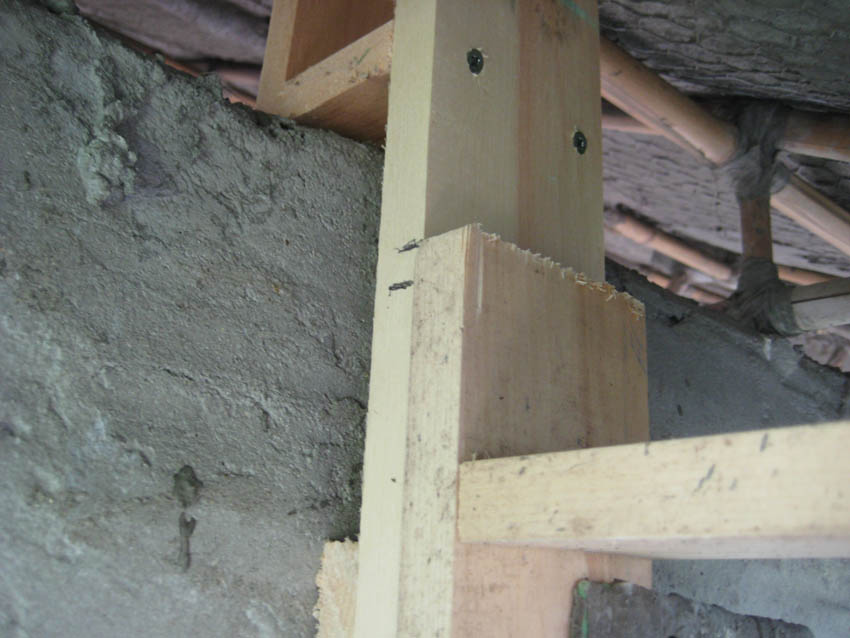

The slope was arbitrarily chosen to be about 1.25 cm in 3 Meters (1/2" : 10'). The top of the sliding brace is below the mark because lowering this end lifted the control board at the high end, like a teeter totter. Adjusting this support system is easy.

continue rain gutter example
